Product Details

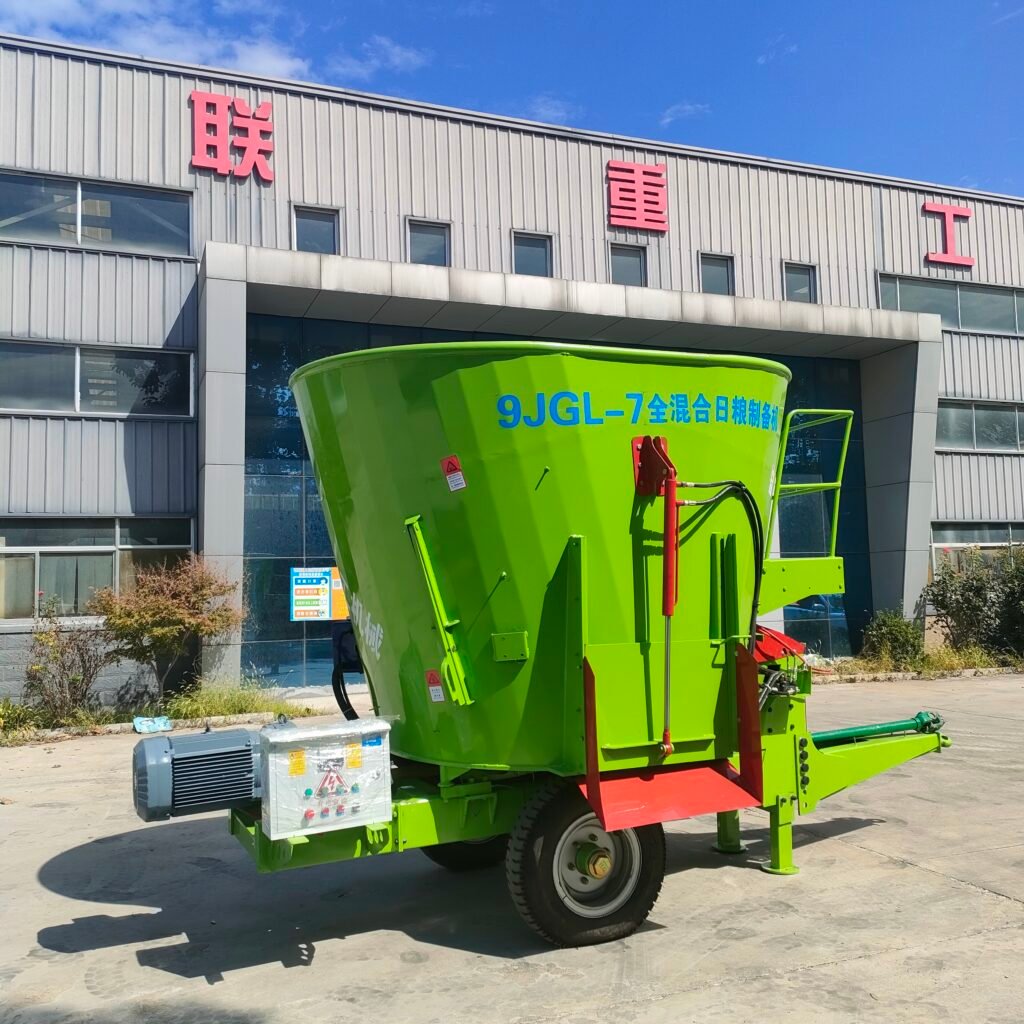

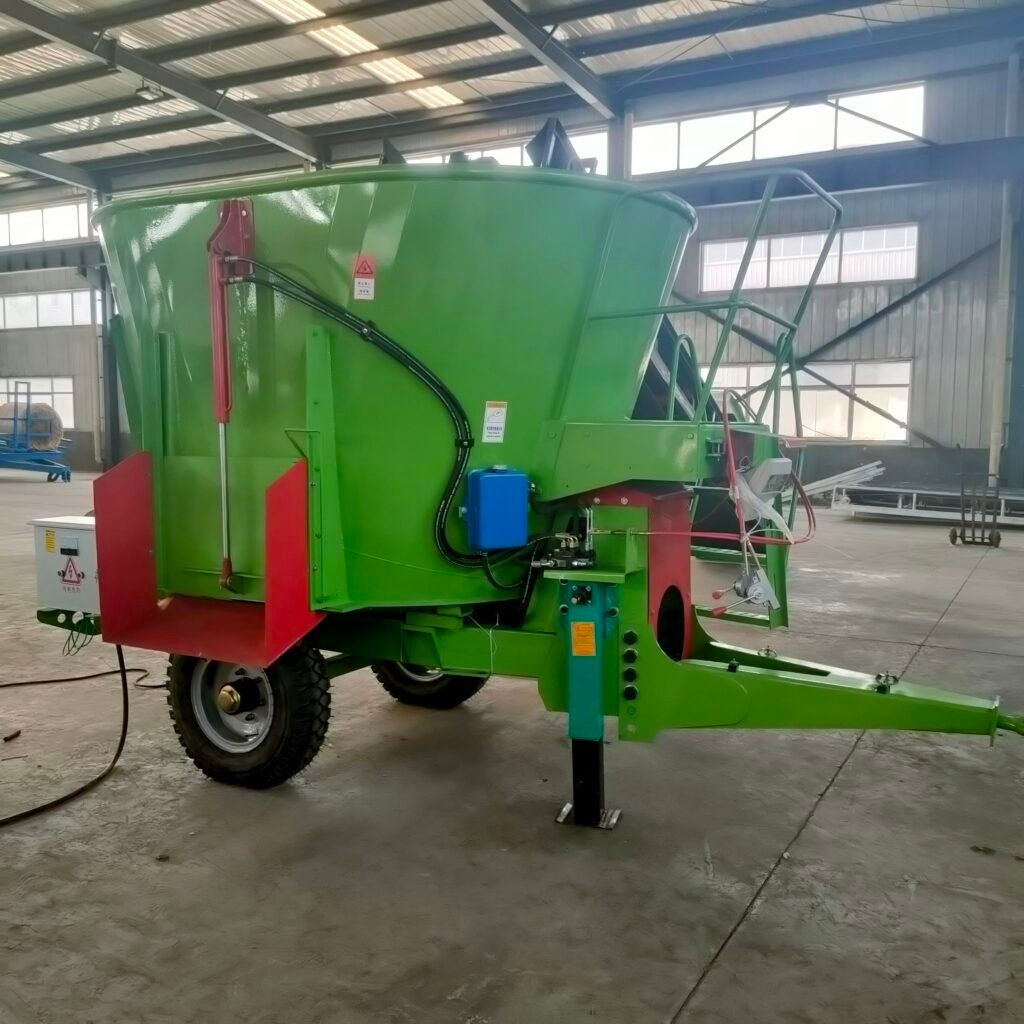

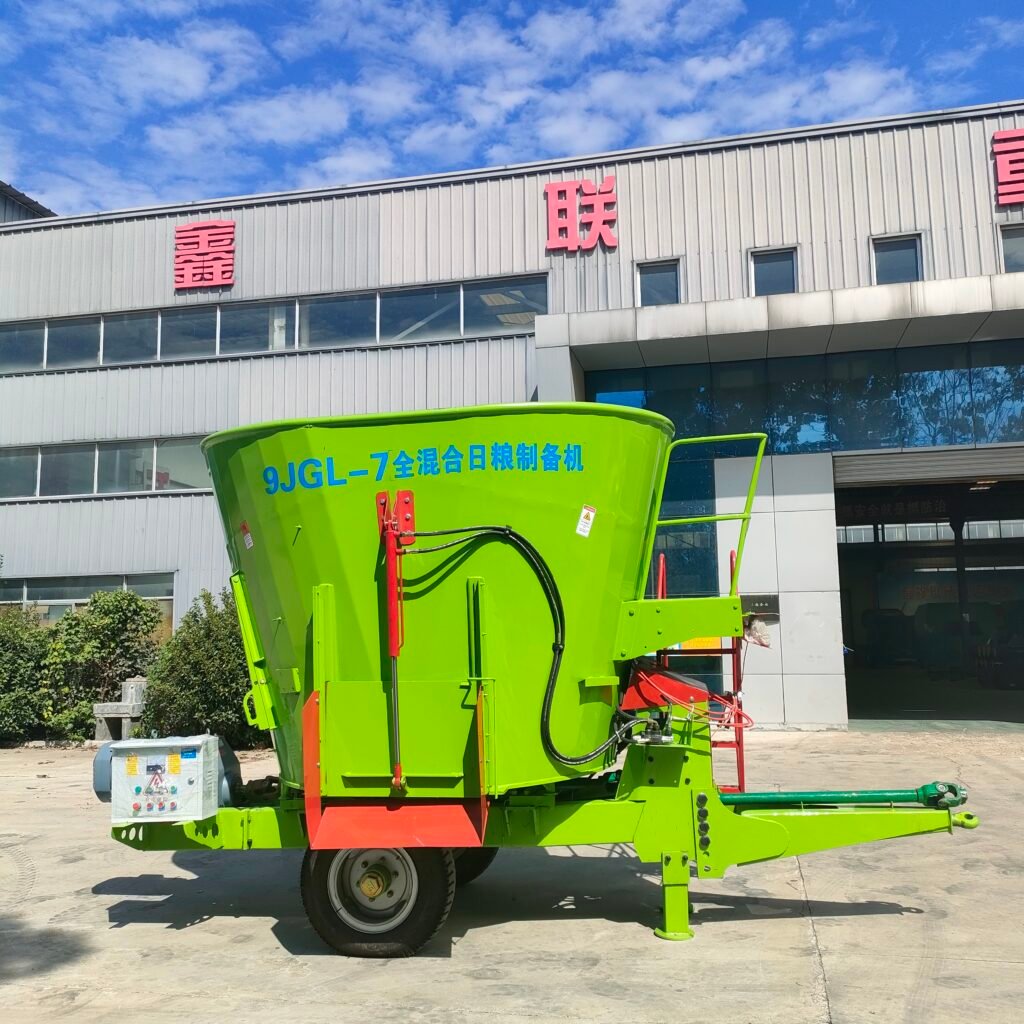

All-mixed-concentrate feed mixer
This product offers various specifications of mixers, including:
The fibrous feed can be cut, mixed and stirred in the mixer. The process is fast and it comes in multiple sizes (5-20 cubic units), which can be customized according to the needs of the dairy farm.
The cutting and stirring time for each batch of feed is about 30 minutes. Depending on the volume of the box, each feed mixer can feed 200-2,000 dairy cows per day, replacing the work of 20 or more workers, reducing the labor intensity of the workers and improving the feeding efficiency.
The advantages of TMR feeding are as follows, compared with traditional feeding methods: It can increase the milk production of dairy cows. Cows fed with TMR can produce 5% to 8% more milk per kilogram of dry matter in their daily diet; It can increase the dry matter intake of dairy cows, eliminating their selective eating habits (selective eating), which is conducive to maximizing the utilization of the lowest-cost feed formula. At the same time, TMR is fully mixed according to the specified proportion in the feed, reducing the occurrence of accidental deficiencies or poisoning of trace elements and vitamins; It can improve milk quality; It can reduce the incidence of dairy cow diseases; It can increase the reproductive rate of dairy cows; It can save feed costs; It can greatly save labor time and improve economic benefits.
This product is suitable for feed mixing operations in agricultural and livestock breeding areas, large and medium-sized breeding farms, and standardized community breeding farms. It can chop and mix various forage, crop straw, silage feed and other fibrous feeds with concentrated feed evenly in one operation.
2. Main features
(1) This product is designed and manufactured rationally. The bottom of the feed trough is made of high-quality alloy steel, suitable for operation in harsh environments, and safe and reliable. The unique cutting blades are made of high wear-resistant materials, and the auger blade material is made of high-quality high-alloy steel, thus greatly increasing the service life of the product.
(2) This product is flexible, convenient to operate, and safe and reliable.
(3) It can directly cut and mix silage feed and various hay bales, straw, etc. of fibrous feed into the mixer, with a fast mixing speed. The cutting and mixing time for each batch of feed is about 30 minutes. Depending on the volume of the box, each feed mixer can feed 200 to 2,000 dairy cows per day, replacing the work of 20 to 200 workers, reducing the labor intensity of workers and improving feeding efficiency.
|
Model number
|
TMR-5
|
TMR-9
|
TMR-12 Double Stirring Rods
|
|---|---|---|---|
|
Overall dimensions (length * width * height)
|
43001700*2200mm
|
15300*2100*2600mm
|
5600*2200*2500mm
|
|
Weight
|
2200kg
|
3000kg
|
4500kg
|
|
Production efficiency
|
1500-2500kg/h
|
3500-4500kg/h
|
7000-8000kg/h
|
|
Axial rotation speed
|
18r/min
|
18r/min
|
18r/min
|
|
Supporting power
|
137-15 horsepower
|
47-30 horsepower
|
R147-22kw horsepower
|
|
Number of blades
|
|
|
210 pieces
|
The above parameters are subject to change without prior notice! For the latest information or custom product requirements, please contact our customer service team for inquiries and quotations.
