Product Details

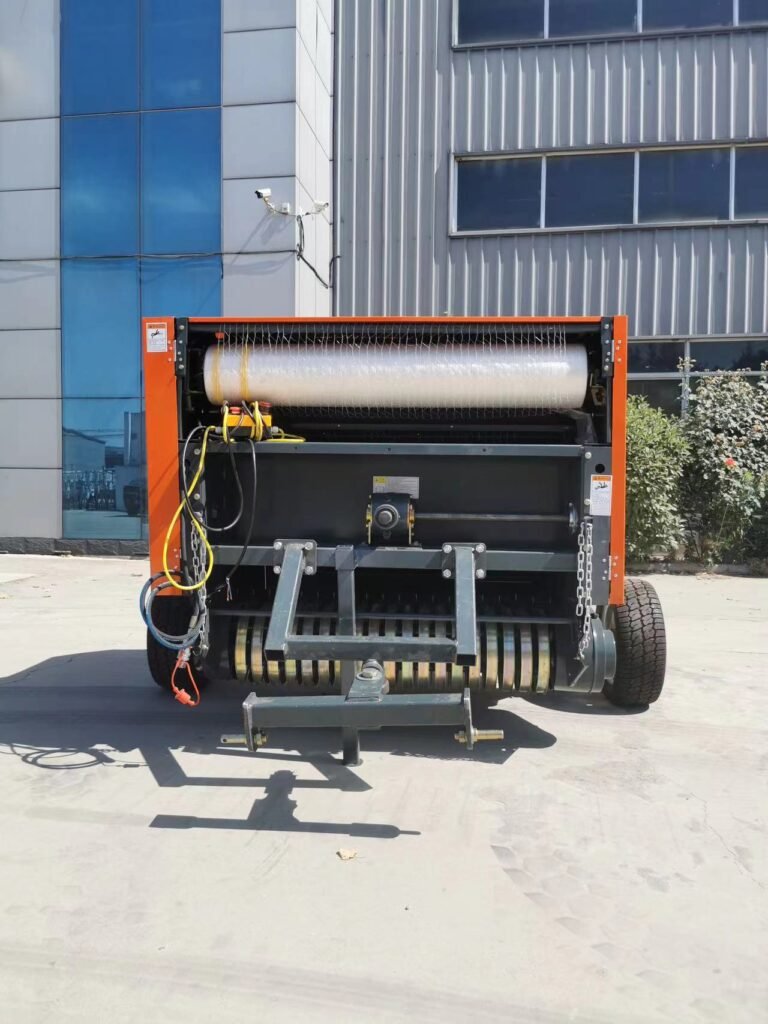

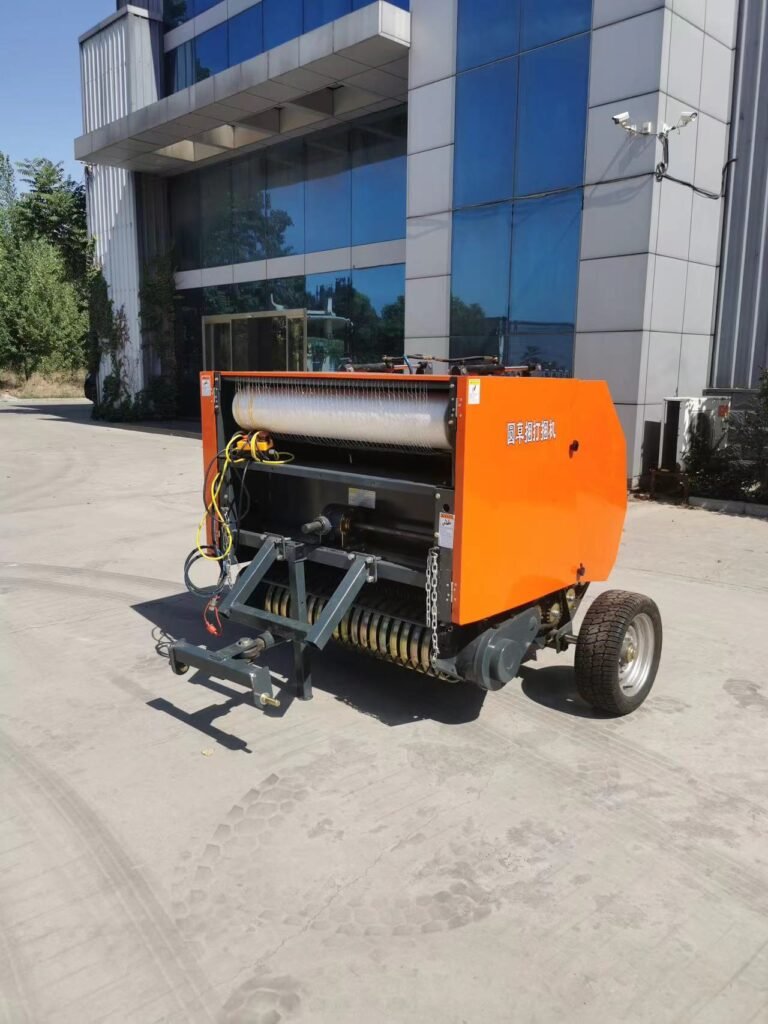

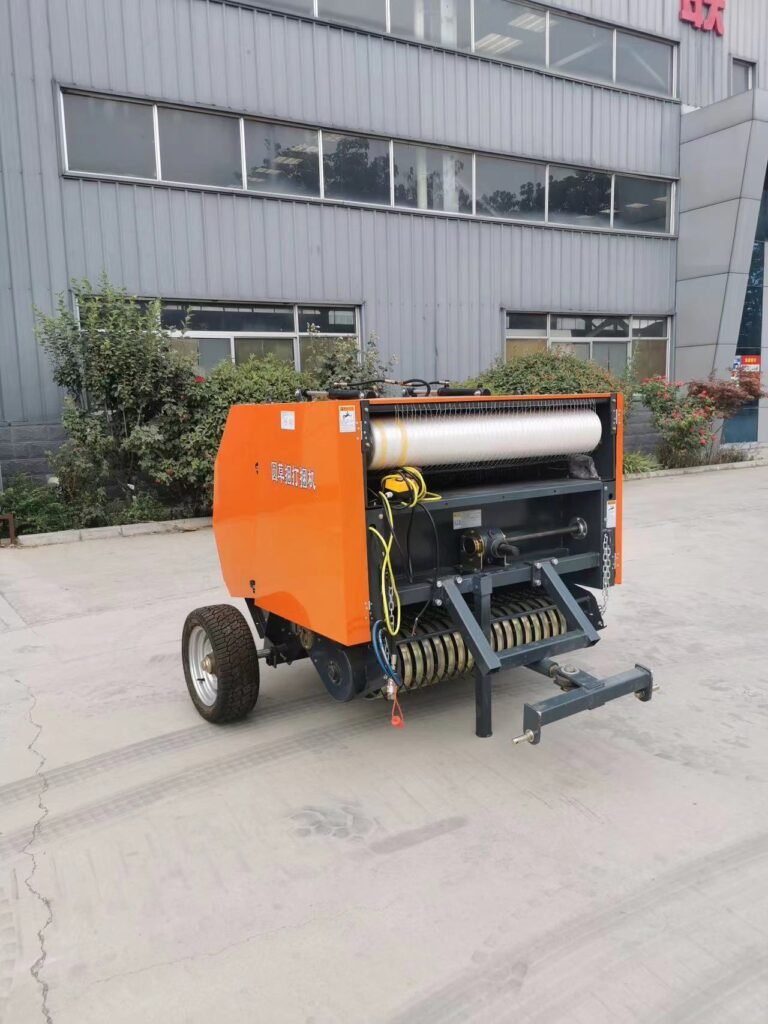

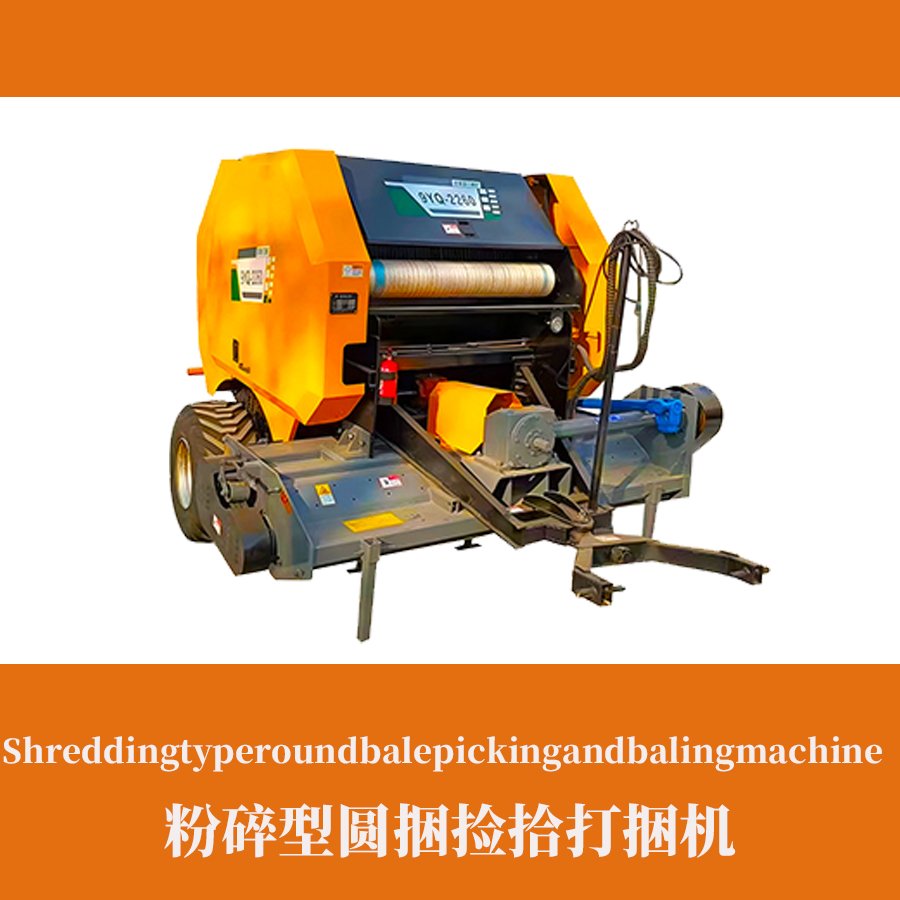

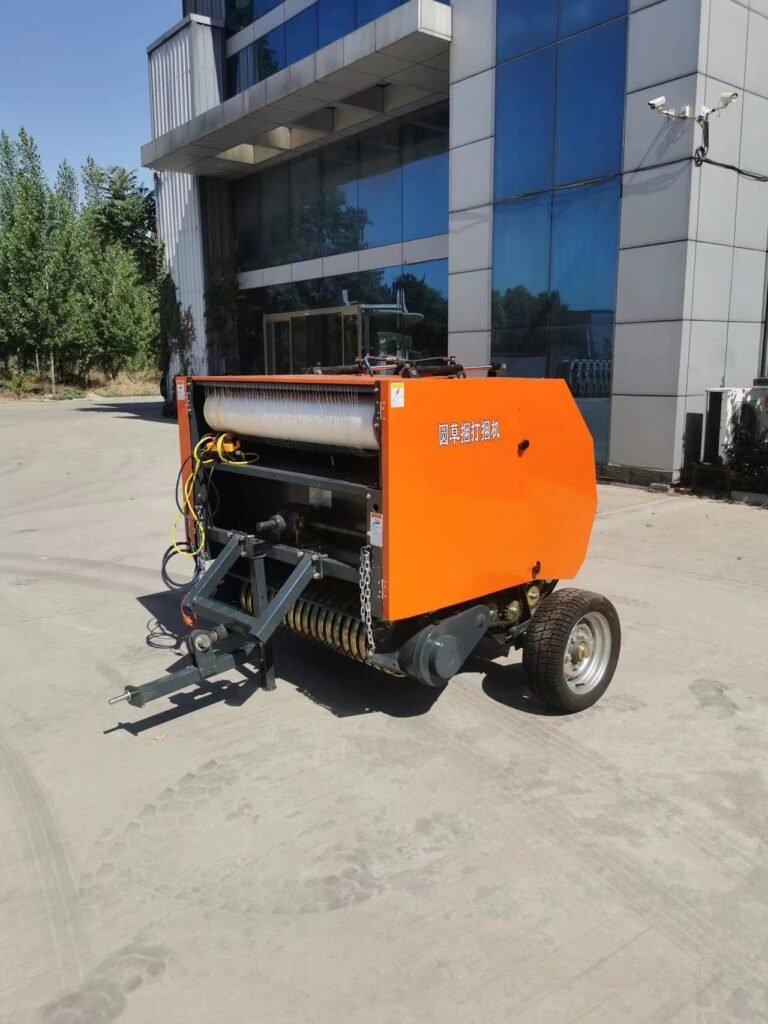

Shredding type round bale picking and baling machine
1. It has a wide range of applications and can bale the straw of hard crops such as cotton stalks, corn stalks, rape stalks, peanut vines, and bean stalks.
2. It has multiple supporting functions. It can directly pick up and bale the straw, or first cut and then pick up and bale it, or first shred and then bale it.
3. It has high efficiency. It can pick up and bale 120-200 mu of crops per day, with a yield of 20-50 tons.
|
Model number
|
9YQ-0.8
|
9YK-1800
|
9Yk-2300
|
9YQ-2300
|
|---|---|---|---|---|
|
Bale size (diameter * width)
|
Diameter: 800 * 930 mm
|
Diameter: 1020 * 1270mm
|
Diameter 1020 * 1270 mm
|
Diameter 1025 * 1250
|
|
Overall dimensions (length * width * height)
|
2400*1800*1350mm
|
2400*2150*1350mm
|
2750*2700*1800mm
|
3200*2700*2300mm
|
|
Weight
|
620kg
|
550kg
|
750kg
|
3800kg
|
|
Pick up width
|
1300mm
|
1800mm
|
2300mm
|
2300mm
|
|
Work speed
|
2-5 kilometers per hour
|
5 - 8 kilometers per hour
|
5 - 8 kilometers per hour
|
5 - 8 kilometers per hour
|
|
Supporting power
|
> 45 horsepower
|
> 55 horsepower
|
> 55 horsepower
|
> 73.5 horsepower
|
|
Matching PTO speed
|
540 revolutions per minute
|
540 revolutions per minute
|
540 revolutions per minute
|
540 revolutions per minute
|
The above parameters are subject to change without prior notice! For the latest information or custom product requirements, please contact our customer service team for inquiries and quotations.
